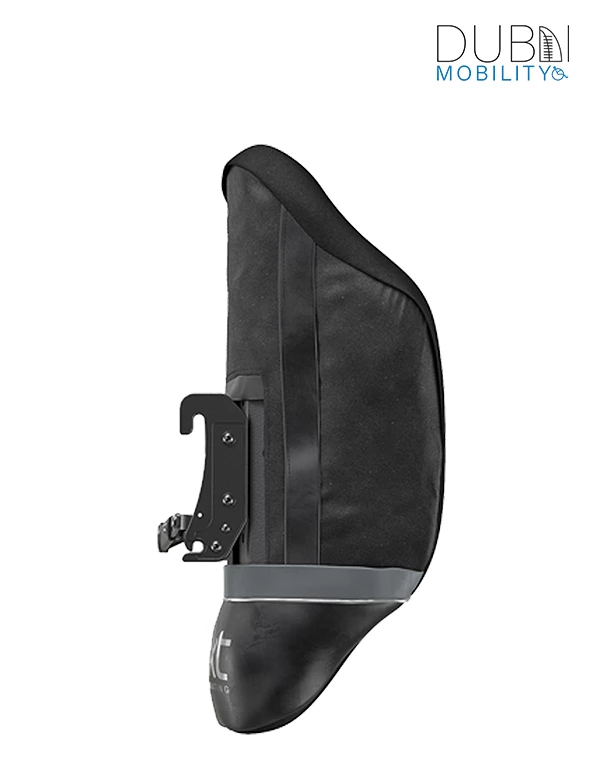

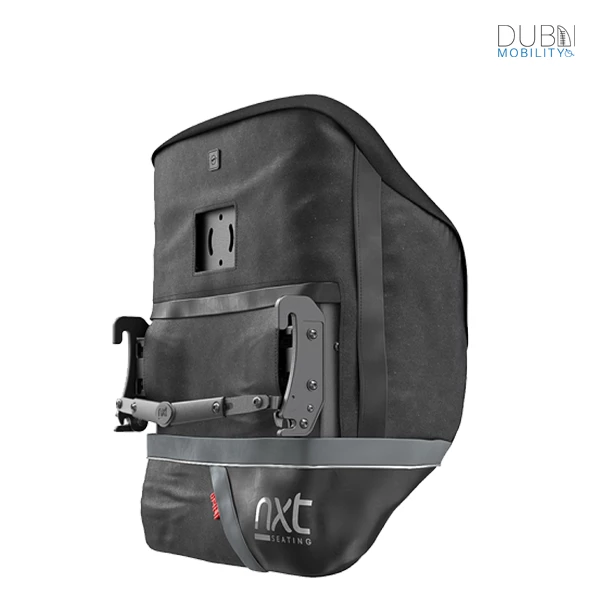

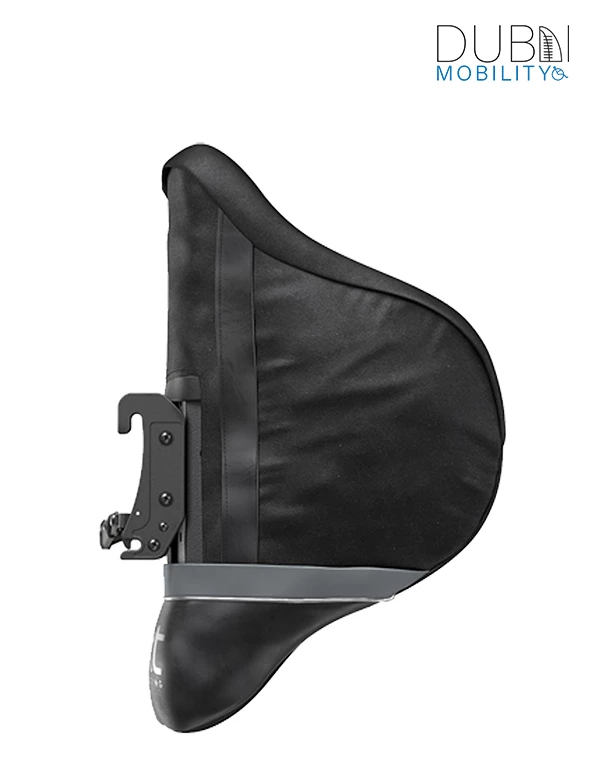

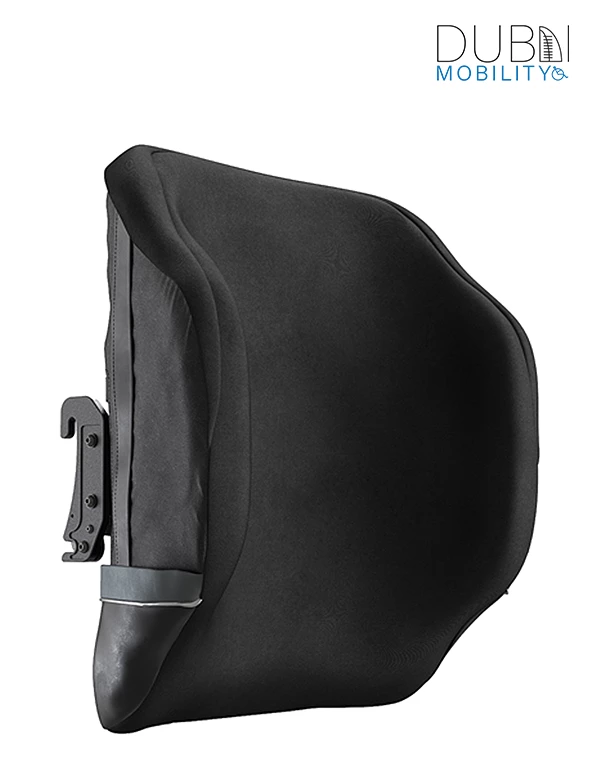

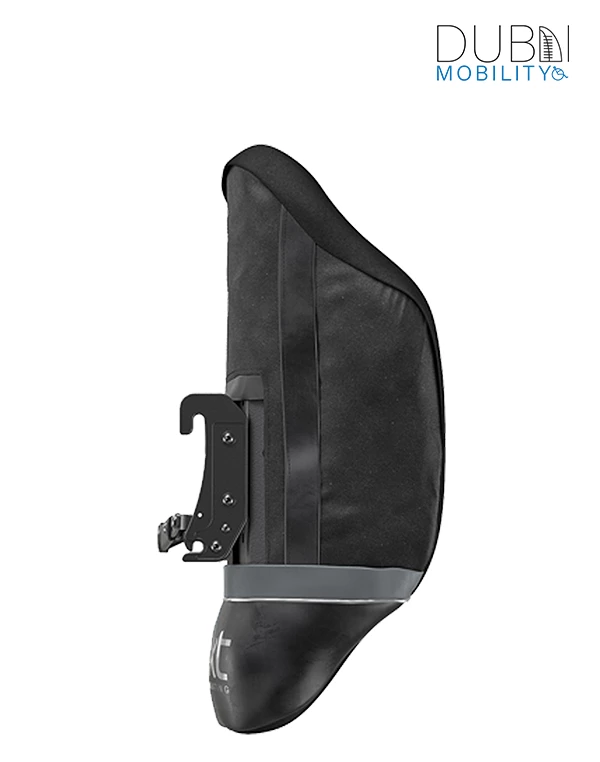

NXT üFit II Pelvic Back Support

üCube foam blocks
Adjustable depth
Aluminum Shell
For spinal deformities
Removable foam blocks

The NXT üFit II pelvic back support is designed to be customized to uniquely fit users with Scoliosis, Kyphosis, and other spinal deformities, requiring mid-thoracic support. The main foam support layer comprises removable/customizable üCube™ foam blocks, which can be individually removed and/or cut to create a unique fit that accommodates each user’s unique needs. A secondary layer of foam ensures the contour is smooth and prevents any exposure to the shell.

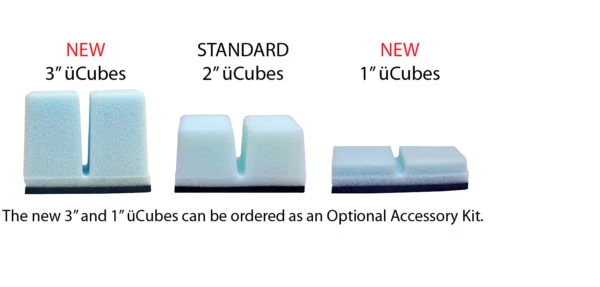

The NXT üFit II Pelvic Back Support uses their new technology üCubes. üCubes have special pins that keep them securely attached to the aluminium shell yet allow easy removal. üCubes come in three different heights – the Standard 2″ and Optional Kits of 1″ or 3″ size, providing a variety of options for customizing this unique back support.

NXT üFit II Pelvic Back Support üCubes 3" and 1"


  • Easily removable üCube foam blocks allow adjustability of the contour shape for a customized fit for the user (üCubes are also individually customizable by cutting them to suit the user as required)
  • Centre foam overlay and double zipper, which provides easy access to üCubes
  • Side contour foam overlays for stability and added comfort
  • üFit II DEEP offers an adjustable lateral contour depth of 8.5″ – 9.5″ (19.7 – 22.2cm) for optimal mid-line support and positioning. DEEP Only.
  • Aluminium shell

What’s included

  • Aluminium shell
  • Depth adjustable lateral contours (DEEP Only)
  • 2″ tall üCube™ polyurethane foam blocks
  • Medium-density foam cushion overlay
  • Cover – 4 Way Stretch Startex fabric
  • One-Hand Quick Release

Accessories and options

    • Incontinent infection control covers
    • Optional Visco Gel midsection
    • Optional 1″ and 3″ stall üCubes™ available
  • Replacement cover
  • Standard and Deep Contour options

Preventing pressure ulcers

It can be difficult to prevent pressure ulcers completely, but there are some things you or your care team can do to reduce the risk.

These include:

  • Regularly changing your position – if you’re unable to change position yourself, a relative or carer will need to help you
  • Checking your skin every day for early signs and symptoms of pressure ulcers – your care team will do this if you’re in a hospital or care home
  • Have a healthy, balanced diet that contains enough protein and a good variety of vitamins and minerals – if you’re concerned about your diet or caring for someone whose diet may be poor, ask your GP or healthcare team for a referral to a dietitian
  • Stopping smoking – smoking makes you more likely to get pressure ulcers because of the damage caused to blood circulation

If you’re in a hospital or care home, your healthcare team should be aware of the risk of developing pressure ulcers. They should carry out a risk assessment, monitor your skin and use preventative measures, such as regular repositioning.

Don’t hesitate to contact one of our team members to get a quote or advice.


NXT üFit Pelvic Back Support
Weight – lbs (kg) 7.2 (3.3)
Height 16 – 20 (40.6 – 50.8)
Fit wheelchair width 14 – 22 (35.6 – 55.8)
Contour Depth 6.25 (15.9) 7.75 – 8.75 (19.7 – 22.2)
Max user wegiht – lbs (kg) 300 (136.08) 22 Wide +: 400 (181.44)


Width Height Fits Wheelchair Width
14 (35.6) 16.(40.6) 18(45.7) 20 (50.8) 14 – 16 (35.6 – 40.6)
16(40.6) 16 – 18 (40.6 – 45.7)
18(45.7) 18 – 20 (45.7 – 50.8)
20(50.8) 20 – 22 (50.8 -55.9)
22(55.9) 22 – 24 (55.9 – 61.0)
