NXT Optima Thoracic Back Support



Scapula cut-out
Higher lateral contours
Reduces temperature
Lightweight shell
Available in 2 sizes
Need more Information? Call +97143709893
- Large Showroom in Central Dubai
- Flexible Payment Options
- Home Delivery and Setup
- 10 Years of Excellent Service
Features
- Built-in height adjustment allows back height and lateral contour height to be set exactly where support is needed. Done quickly and easily with the user seated in the wheelchair
- Two-piece lightweight aluminium shell
- An adjustable upper section allows for optimal lateral thoracic support.
- Fixed lower section supports the pelvic area
- Xtend Low DEEP offers an adjustable lateral contour depth of 5.5 – 7″ (14 – 17.8cm) for optimal mid-line support and positioning.
- Scapula cut-out shape
Accessories and options
- Lateral Supports

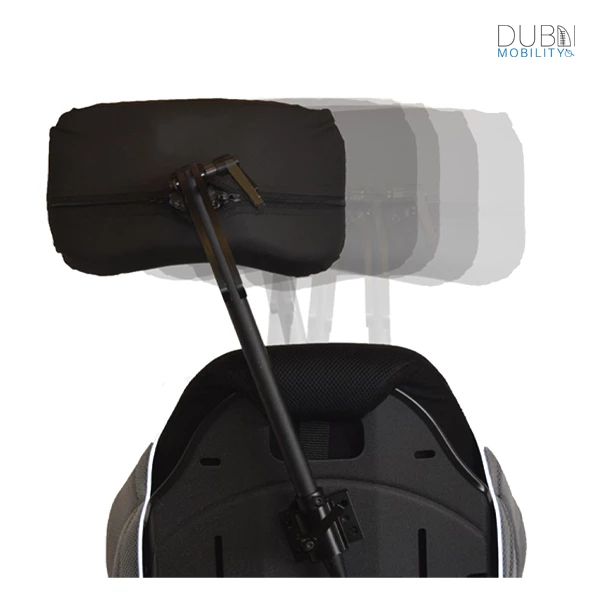

- Head supports
- Replacement cover and foam
- Incontinent infection control covers (inner and outer)
What’s Included
- Two-piece lightweight aluminum shell (height adjustable)
- Depth adjustable lateral contours (DEEP Only)
- Dual-density foam back cushion with smartGEL Infused Visco Technology
- Pelvic/lumbar pads
- smartx3D Antimicrobial polyester 4 way stretch cover (washable)
- One-Hand Quick Release
- QuickFit Mounting System –Installation Hardware
The NXT Optima and Optima DEEP Thoracic Back Supports were designed for optimal pelvic positioning while providing proper support to the user’s thoracic region.
The NXT Optima Thoracic Back Support offers a wide range of width and height choices to accommodate a variety of users, from very active to less active, and body types from very small to bariatric.
The Optima Back supports are designed to provide excellent support and comfort while enhancing the user’s natural range of motion. The Pelvic-lumbar support pads can be uniquely positioned to customize the fit for the user, allowing for optimal pelvic positioning. The Optima Thoracic Back Support has a 3″ / 8cm mild thoracic contour. It fits 1″, 7/8″ or 3/4″ / 2.5cm, 2.2cm, 1.9cm angle adjustments and even rotation. The weight capacity is 14″-20″ / 40cm – 50cm, 300lbs / 136kg, and 22″ and 24″, 400lbs / 182kg.
The Optima DEEP Thoracic Back Support has a depth-adjustable deep thoracic contour of 5.5″ – 7″ / 14-18cm. It fits 1″, 7/8″ or 3/4″ / 2.5cm, 2.2cm, 1.9cm cane diameters without shims. The removable Quickfit mounting hardware has height adjustment, 5″ / 13cm of depth, 25 degrees of posterior/anterior angle adjustment, and even rotation. The weight capacity is the same as the NXT Optima: 14″-20″ / 40cm – 50cm, 300lbs / 136kg, and 22″ and 24″, 400lbs / 182kg.
Full Specifications
Optima | Optima Deep | |
Weight – lbs (kg) | 2.7 (1.22) | 3.3 (1.5) |
Height | 9 – 19 (22.8 – 48.3) | |
Fit wheelchair width | 14 – 29 -(35.5 – 78.8) | 15 – 29 (38.1 – 78.8) |
Contour Depth | 3 (7.60) | 5-5 – 7 (14 -18) |
Max user weight – lbs (kg) | 300 (136.08) 22 Wide +:400 (181.44) **23 Wide + 550 (250) |
Sizes
Width | Height | Fits Wheelchair Width | ||||
---|---|---|---|---|---|---|
13 (35.6) | 13 -15 (33.2 – 38.1) | |||||
14 (35.6) | 14 -16 (35.6 – 40.6) | |||||
15 (38.1) | 15 – 17 (38.1 – 43.2) | |||||
16 (40.6) | 7 (17.7) | 9 (22.8) | 13 (33.0) | 16 -15 (33.2 – 38.1) | ||
17 (43.2) | 17 -19 (43.2 – 48.3) | |||||
18 (45.7) | 18 – 20 (45.7 – 50.8) | |||||
19 (48.3) | 19 – 21 (48.3 – 53.3) | |||||
20 (50.8) | 20 – 22 (50.8 – 58.4) | |||||
21 (53.3) | 16(40.6) | 21 – 23 (53.3 – 58.4) | ||||
22 (55.9) | 22 – 24 (55.9 – 61.10) | |||||
23 (58.4) | 19 (48.3) | 23 – 25 (58.4 – 63.5) | ||||
24 (61.0) | 24 – 26 (58.4 – 63.5) | |||||
25 (63.5) | 25 – 27 (63.5 – 68.6) | |||||
26 (66.0) | 26 – 28 (66.0 -71.1) | |||||
27 (68.6) | 27.-29 (68.6 – 73.7) | |||||
28 (71.1) | 28 – 30 (71.1 – 76.2) | |||||
29 (73.7) | 29 – 31 (73.7 – 78.8) |
What’s Included

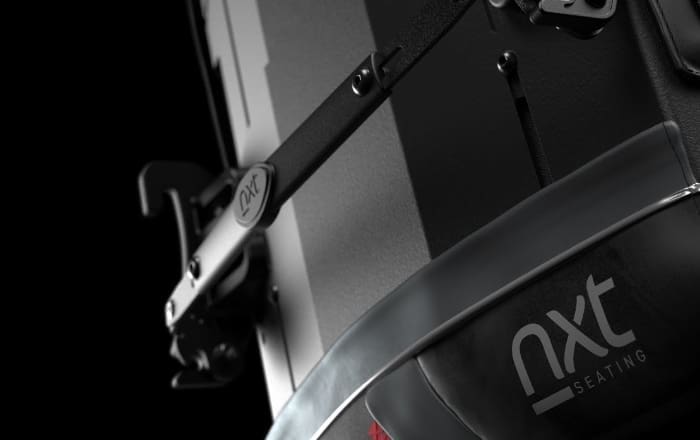

One-handed quick release
The simple-to-operate one-handed, quick-release bar allows the back support to be easily removed from the chair.

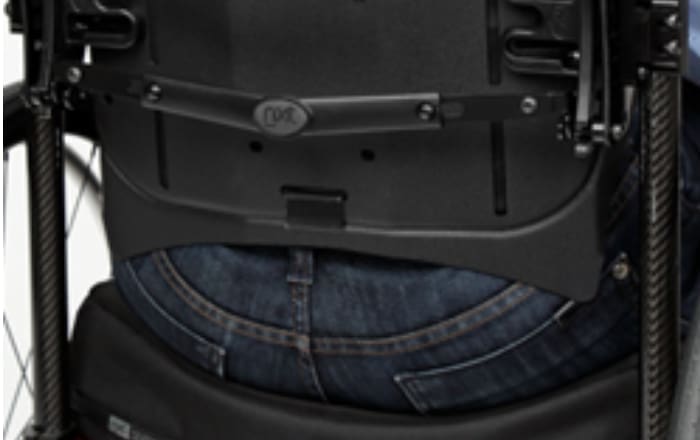

Pelvic positioning cut-out
The pelvic positioning cut-out provides a space for the buttocks to protrude beyond the back for a better, more natural seated position.

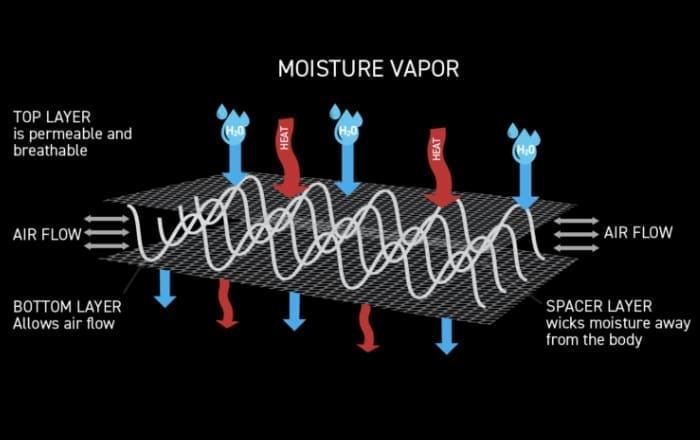

smartx3D cover
The smartx3D uses a three-layer technology that includes two separate fabrics joined by a monofilament yarn that creates a breathable channel between the two fabrics. It is this channel that gives smartx3D its 3D structure and creates a “micro-climate” between layers.
Heat and vapour move easily through the highly permeable fabric layer.
smartx3D naturally offers a four-way stretch which provides enhanced immersion, aiding in pressure redistribution.
Soft, breathable, resistant to pilling and with moisture-wicking properties, smartx3D offers the ultimate in comfort.

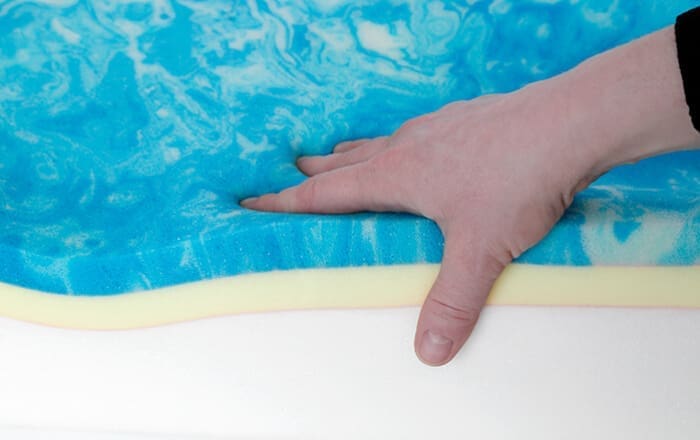

smartGEL
The combination of NXT’s smartx3D fabric and smartGEL foam provides the ultimate comfort and support. NXT’s smartGEL foam offers a higher IFD (Indent Force Deflection and Density), yet it is incredibly soft, highly resilient, and long-lasting.
The gel is incorporated into the foam mixture at the molecular level, which allows for 100% homogeneous cooling with no breakdown of embedded gel beads.
This reduces surface temperature, drawing heat away from the skin while providing superior comfort and softness.
